Steel Bands for Tanks HL41873 and HL45191 - Kit of 2 units

Print screen

SKU : AR617452

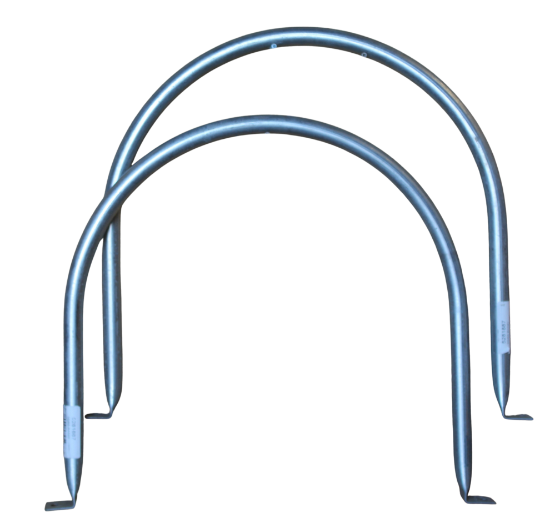

Steel Bands for Tanks HL41873 and HL45191 - Kit of 2 units

156,24 $

Sold : 1 Unit

Qty:

Dimensions and characteristics below

Buy more and save !

Quantity	Price
3	153,12 $
4 - 7	148,43 $
8 +	145,30 $

CHARACTERISTICS

SKU : AR617452

Attribute name Attribute value
Made for HL41873 et HL45191
Dimensions (W x H) 27" x 24.75"
Color Grey
Description Hoop kit for horizontal tanks
Kit Weight (lbs) 13

DESCRIPTION

FIXING STEEL BANDS:

Optional steel bands - Sold separately
The kit includes 2 units
Easy to install; to be inserted into the molded-in grooves on the tank

Once the steel bands are installed on the tank, it is totally normal to have an empty space between the hoop attachment bracket and the ground.
The gap typically varies between 1/2 to 4 inches, depending on the tank model.
To attach the steel bands, simply use bolts of sufficient length, or, before bolting, it is also possible to insert a spacer to fill the gap between the hoop bracket and the ground (spacer is optional).
Very secure and strong when bolted through the floor (bolts not included)

Specifically designed to attach the tank securely during transport
Preserve the shape and integrity of the tank ensuring maximum life
Prevent the tank from deforming under the pressure of the liquid
When fixed to the floor, they do not create any pressure on the top of the tank like nylon straps do
Offer the flexibility on the location or orientation of the tank; they do not depend on the anchors located in fixed locations on each side of the truck box or platform
Maximize space in the truck; by being close to the tank, they clear the space around
Material: the body of the pipe is galvanized steel and the two feet are standard steel welded to the pipe
Product images are for information purposes only. Please check the product description

TECHNICAL DRAWINGS

Product Files

Dessins techniques / Technical drawings

Dessin Technique Arceaux d'Acier AR61745

RESSOURCES

Did you know?

GOOD TO KNOW...

The steel bands are specially designed to secure the tank in a truck box, on a flatbed truck or in a trailer, in a very secure way, when transporting liquids. They are very easy to install, as they simply have to be inserted into the molded slots on the tank.

Hoops are definitely better than nylon straps. Unlike nylon straps that are tight on each side of the tank and squeeze the top of the tank, the steel bands do not cause any pressure on the tank, allowing it to expand when filling and spring back to its original shape when empty. They therefore help to preserve the shape and integrity of the tanks by preventing them from deforming under the pressure of the liquid.
