SKU : CB120090

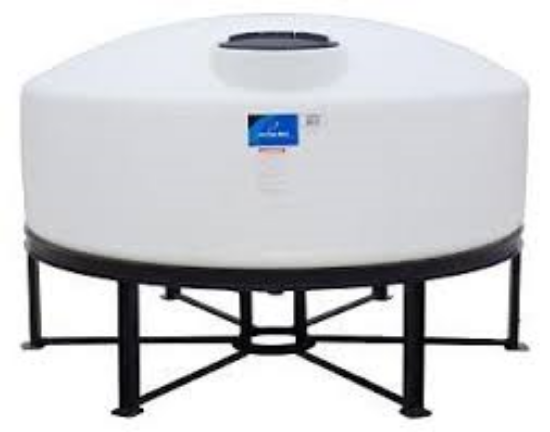

1200 US Gallons Close Top Cone Bottom Tank, 1.7 sg, White. Steel Stand Included

6 503,72 $

Sold : 1 Unit

Qty:

Buy more and save !

Quantity	Price
3	6 373,65 $
4 - 7	6 178,53 $
8 +	6 048,46 $

This item has a shipping limitation ( Read here )

Characteristics / Description Technical drawings / Resources Did you know?

CHARACTERISTICS

SKU : CB120090

Attribute name Attribute value
Dim. On Support (Diam. x H) 95" x 73
Capacity (Litre) 4542
Capacity (Gal US) 1200
Outlet 2"
Lid 16" Vented
Relative Density 1.7
Color White
Cone Angle 15°
Cone Distance on the ground 11"
Weight with stand (lbs) 622
Series CB Series
Dimensions of the tank (Diam. x H) 90" x 62"
Roof type Dome

Product tags

DESCRIPTION

** Tank made to order (Not returnable and non-refundable item)

PLASTIC TANK :

Material: medium-density polyethylene (MDPE) with UV inhibitors
Molded in one piece
15° conical bottom
Enables quick and complete drainage
Dome top tank
Tanks top feature additional flats for fitting installation or mount
Screw lid: 16″ with vent (# COUV10528)
Outlet included: 2″ polypropylene, threaded FNPT
Specific gravity: 1.7 (14.16 lb / US Gallon) at 20 °C
Translucent white
Built-in level indicator in US gallons and litres
Resin meets the FDA regulations for food contact
Maximum storage temperature of 120 °F / 49 °C
Above ground use only
Can’t be pressurized
Product images are for information purposes only. Please check the product description and technical drawing.

PAINTED STEEL STAND :

Included with the tank
Material: black painted steel
Above ground use only
Product images are for information purposes only. Please check the product description and technical drawing.

Return to tabs

TECHNICAL DRAWINGS

Product Files

Dessins techniques / Technical drawings

RESSOURCES

Product Files

Guide d'achat / Buyer's guide

Buyer's guide - Tanks

Guide d'installation et d'utilisation / Installation and user guide

Guide de la densité relative / Relative density guide

Relative density guide

Guide de résistance aux produits chimiques / Chemical resistance guide

Charte de résistance aux produits chimiques / Chemical resistance chart

Return to tabs

Did you know?

GOOD TO KNOW...

We install additional accessories and fittings on our tanks.
For any assembly adapted to your needs such as the installation of inlets, outlets, vents, overflows, welded HDPE flanges and fittings, valves, etc., please contact one of our sales representative at 450-471-2772 Ext. 1.

The closed top cone bottom tanks of the CB series are designed for stationary use only. All tanks in this series are mounted on a black-painted steel stand that is included when purchasing the tank. At all times, they must be placed on their steel support specifically designed to avoid pressure points that could damage the walls of the tank. These conical tanks are made of medium or high-density polyethylene treated with UV protection for indoor or outdoor use. Note that if the tank is stored outside, over time, the metal stand may rust. The resin used to manufacture the plastic tank complies with FDA standards for potable water.

Depending on the model, the tanks are designed to contain liquids up to 2.0 specific gravity. The inclination of the base varies between 15° and 45°, so the cone bottom tanks are suitable for holding different types of liquids or mixtures ranging from viscous to thicker. The walls are translucent white to show the level of the contents and have a molded-in graduation in US gallons and liters. All tanks are equipped with a drain and a vented screwed lid.

The cone bottom plastic tanks of the CB series have multiple uses; for the storage of water, chemicals, dense or viscous liquids, for the mixing of powder with a liquid, for the preparation of blends of all kinds or for a settling process. They are very interesting when a complete cleaning and drainage is required between each use.

* All dimensions, specifications and capacities may vary slightly and are subject to change without notice.
