Print screen

SKU : CBO100015

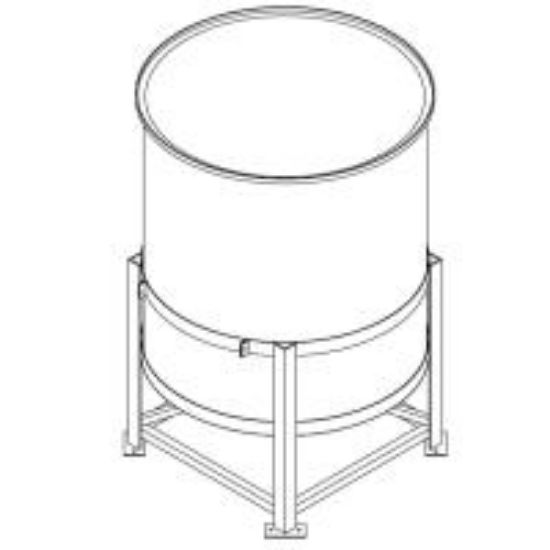

Open Top Cone Bottom Tank, White 1.5 sg. Steel Stand Included - 1200 US Gallons / 4387 Liters

9 114,20 $

Sold : 1 Unit

Qty:

Dimensions and characteristics below

Buy more and save !

Quantity	Price
2	8 931,92 $
3 - 7	8 658,49 $
8 +	8 476,21 $

This item has a shipping limitation ( Read here )

Made in Canada

CHARACTERISTICS

SKU : CBO100015

Attribute name Attribute value
Capacity (Litre) 4387
Capacity (Gal US) 1200
Color White
Outlet None
Lid Optional
Relative Density 1.5
Cone Angle 17°
Cone Distance on the ground 18"
Weight with stand (lbs) 850
Series CBO Series
Dimensions of the tank (Diam. x H) 74" x 87.5"

Product tags

cbo100015 (1)
,
canada (146)

DESCRIPTION

** Tank made on order (Not returnable and non-refundable item)
** Tank without drain and without level indicator

PLASTIC TANK :

Material: high-density polyethylene (HDPE) with UV inhibitors
Molded in one piece
Open top offering a complete access to the content

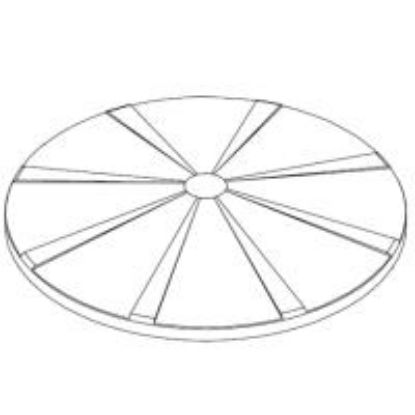

Dust lid or hinge lid available (sold separately)
17° conical bottom
The cone bottom doesn’t feature any outlet (sold as an option)
The conical bottom enables quick and complete drainage
No level indicator available for this tank
Specific gravity: 1.5 (12.5 lb / US Gallon) at 20 °C
Translucent white
Resin meets the FDA regulations for food contact
Resin complies with the requirements of NSF/ANSI Standard 61 for potable water storage
Maximum storage temperature of 120 °F / 49 °C
Above ground use only
Can’t be pressurized
Product images are for information purposes only. Please check the product description and technical drawing.

PAINTED STEEL STAND:

Included with the tank
Material: black painted steel
Above ground use only
Product images are for information purposes only. Please check the product description and technical drawing.

TECHNICAL DRAWINGS

Product Files

Dessins techniques / Technical drawings

Dessin Technique CBO100015 / CBO100019 - 1200 Gal. US

RESSOURCES

Product Files

Guide d'achat / Buyer's guide

Buyer's guide - Tanks

Guide d'installation et d'utilisation / Installation and user guide

Guide de la densité relative / Relative density guide

Relative density guide

Guide de résistance aux produits chimiques / Chemical resistance guide

Charte de résistance aux produits chimiques / Chemical resistance chart

Did you know?

GOOD TO KNOW...

We install additional accessories and fittings on our tanks.
For any assembly adapted to your needs such as the installation of inlets, outlets, vents, overflows, welded HDPE flanges and fittings, valves, etc., please contact one of our sales representative at 450-471-2772 Ext. 1.

The open top cone bottom tanks of the CBO series are designed for stationary use only.
All tanks are mounted on a black-painted steel stand that is included when purchasing the tank. At all times, the tank must be placed on his steel support specifically designed to avoid any pressure points that could damage the walls and lead to a leak. These conical tanks are made of high-density polyethylene treated with UV protection for indoor or outdoor uses. If the tank is stored outside, over time, the metal stand may rust. The resin used to manufacture the plastic tank complies with FDA standards for food application.

Depending on the model, the tanks are designed to contain liquids up to 1.9 specific gravity.
The inclination of the base varies between 17° and 30°, so the cone bottom tanks are suitable for holding different types of liquids or mixtures ranging from viscous to thicker. The walls are translucent white to show the level of the contents and but don’t features any level graduation. There is no outlet included with the tank, it is sold as an option. Two optional types of lids are offered; a dust-lid that can be totally removed to access the content or a 2/3 welded and 1/3 hinge lid.

The cone bottom plastic tanks of the CBO series have multiple uses; for the storage of water or chemicals, dense or viscous liquids, for the mixing of powder or liquids, for the preparation of blends of all kinds or for a settling process. They are very interesting when a complete cleaning and drainage is required between each use.

* All dimensions, specifications and capacities may vary slightly and are subject to change without notice.
