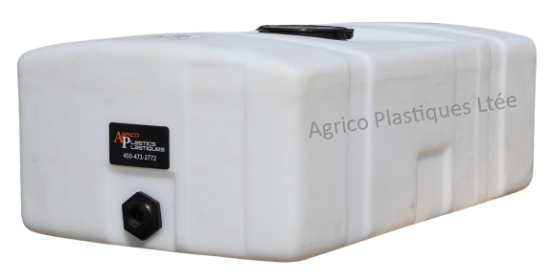

Rectangular Low Profile Tank, White 1.5 sg - 52 US Gallons / 197 Liters

Print screen

SKU : LP43839

Rectangular Low Profile Tank, White 1.5 sg - 52 US Gallons / 197 Liters

523,56 $

Sold : 1 Unit

Qty:

Dimensions and characteristics below

Buy more and save !

Quantity	Price
3 - 4	507,85 $
5 +	497,38 $

CHARACTERISTICS

SKU : LP43839

Attribute name Attribute value
Dim. (W x L x H) 24" x 43" x 17"
Capacity (Litre) 197
Weight (lbs) 37
Capacity (Gal US) 52
Color White
Outlet 1"
Lid 5"
Relative Density 1.5
Series LP Series

Product tags

transport tank (46)
,
50 gallons (9)
,
52 gallons (1)
,
200 litres (11)
,
200 liters (11)
,
eau (54)
,
potable (54)
,
pour (54)
,
reservoir (54)
,
de (50)
,
transport (48)
,
43839 (1)

DESCRIPTION

Ventless Tank - Sold Separately
Material: high-density polyethylene (HDPE) with UV inhibitors
Molded in one piece
Freestanding with a flat bottom
5" ventless hinge lid (# COUV63673)
1" outlet included, polypropylene, threaded FNPT with EPDM Gasket
Can contain liquids with specific gravity up to 1.5 (12.5 lb / US Gallon) at 20°C
Translucent white
Built-in graduated US gallon indicators
Resin meets the FDA regulations for potable water storage
Maximum temperature of use of 120 °F / 49 °C
Above ground use only
Can’t be pressurized
Product images are for information purposes only. Please check the product description and technical drawing

TECHNICAL DRAWINGS

Product Files

Dessins techniques / Technical drawings

Dessin Technique Réservoir LP43839

RESSOURCES

Product Files

Guide d'achat / Buyer's guide

Buyer's guide - Tanks

Guide d'installation et d'utilisation / Installation and user guide

Guide de la densité relative / Relative density guide

Relative density guide

Guide de résistance aux produits chimiques / Chemical resistance guide

Charte de résistance aux produits chimiques / Chemical resistance chart

Did you know?

GOOD TO KNOW...

We can install additional connections and accessories on our tanks.
For a specific installation that meets your needs such as bulkhead fittings, drains, vents, ball valves, flanges and HDPE welded couplings, please contact one of our advisors at 450-471-2772 Ext. 1.

These low-profile rectangular tanks from the LP series are mostly used for liquid transportation or storage. They are perfect to fit inside a pickup truck box without exceeding. They are fabricated from HDPE with UV inhibitors and can be used for any indoor or outdoor applications. The resin used to manufacture these tanks meets the FDA regulations for safe storage of potable water. They are designed to contain liquids up to 1.5 specific gravity. Tank walls are translucent for level viewing and are equipped with a molded-in US gallon indicators.

At all times, the tanks must be placed on a flat surface as smooth as possible to avoid pressure points that can damage the base. They come standard with a drain and a non-vented hinged lid.

The LP series low profile rectangular tanks are great for: storing safe potable water, sap water or rainwater, harvesting, chemical storage, liquid management, liquid solution storage, farm irrigation and any other food, industrial or commercial applications.

* All dimensions, specifications and capacities may vary slightly and are subject to change without notice.
