SKU : RS400PPE

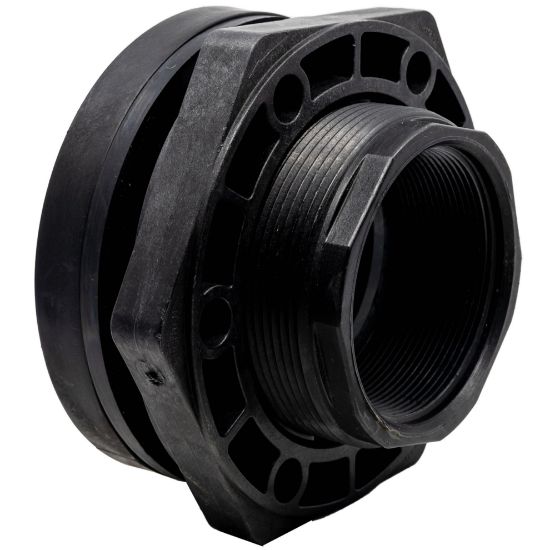

4" Fem NPT Thread Bulkhead Fitting. Polypropylene with EPDM Gasket

308,76 $
Sold : 1 Unit
Dimensions and characteristics below

Buy more and save !

QuantityPrice
3 - 5302,58 $
6 - 10293,32 $
11 - 25287,15 $
26 +277,88 $

CHARACTERISTICS

SKU : RS400PPE
  • Attribute name Attribute value
  • Diameter 4"
  • Seal EPDM
  • Connection Threaded Fem-Fem
  • Material Polypropylene
  • Use Entrance;Drain;etc.
  • Color Black

DESCRIPTION

  • Additional bulkhead fitting
  • Made from polypropylene
  • EPDM gasket
  • Female-Female NPT threaded
  • Hole saw size to drill the hole : 5-3/4″
  • Minimum fitting installation height (center – to floor): 8-1/2″
  • Dimension of flat space required to install the bulkhead fitting: 10″ x 10″
  • Minimum diameter of the tank to fix the fitting on the rounded wall: 87″
  • Suggested minimum space between 2 fittings (center to center): 20″
  • Torque foot lbs: 80
  • Product images are for information purposes only. Please check the product description.
  • It is recommended to check the chemical compatibility between the liquid to be contained and the materials of the fitting (polypropylene and EPDM) to ensure optimal operations.
